Support Arm HDV-TA
Weight of workpiece: max. 1.500 kg
This Support Arm expand the capability of the Lifting and Rotating devices Type HDV MONO Workpieces are rotatable in a additional rotation axis.
- Turntable remote control
(L/R, Emergency-Stop with 3 m Cable) - Integrated transport lugs and bolts for easy adaption
- welding current conduction 500A
Technical Details - Support Arm HDV-TA

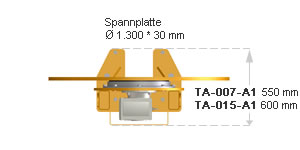

| Support Arm | HDV-TA-007-A1 | HDV-TA-015-A1 |
|---|---|---|
| workpiece weight max. | 750 kg | 1.500 kg |

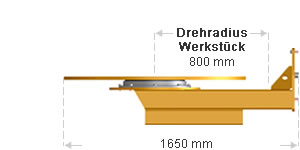

| workpiece Ø max. | 1.600 mm | 1.600 mm |
| torque | see HDV | see HDV |
| rotational direction | 90° L/R | 90° L/R |
| rotating speed | 0,5 U/min | 0,5 U/min |
| lifting height | see HDV | see HDV |
| Turntable | ||
| torque max. | 1.000 Nm | 2.500 Nm |
| rotational direction | 360° | 360° |
| rotating speed | 0,87 U/min | 0,87 U/min |
